1. Overview & Operational Problem
Pressure alone does not cause deep tissue breakdown; mechanical shear stress—the lateral distortion of skin and muscle against bone—is the primary driver of tissue ischemia. Stiff, unyielding cushion covers lock the skin in place while deeper tissue shifts.

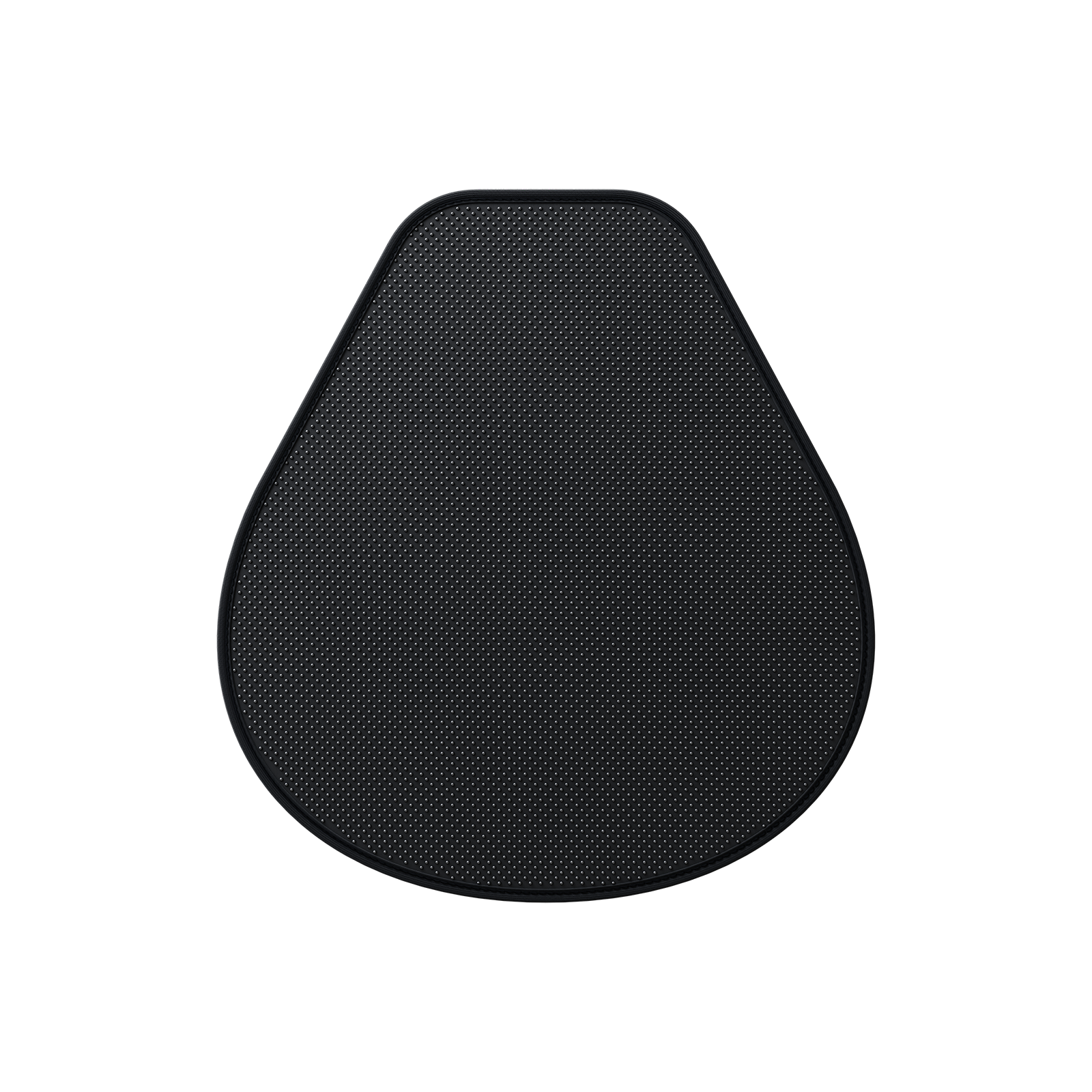

Figure 1: Minimizing Pelvic Shear Forces: Low-Friction Outer Covers vs Air Cell Deflection – Industrial engineering and quality implementation.
2. Engineering Root Causes & Technical Analysis
A high-performance seating system requires multi-axis independent cell deflection paired with 4-way stretch, low-friction elastomeric covers (polyurethane-coated Lycra) that decouple surface shear from internal body movements.
2.1 Key Mechanical & Physics Variables
Achieving stable performance requires strict adherence to physical containment principles: managing dielectric loss factors, controlling membrane tensile hoop stresses, and maintaining uniform thermal dissipation during high-frequency welding cycles. Tooling engineers must avoid sharp stress risers and balance material thickness across the assembly.
3. DFM Parameters & Quality Verification Matrix
| Engineering Variable | Governing Standard | Critical Risk Analysis | Verification Protocol |
|---|---|---|---|
| Material Barrier Specification | ASTM D1434 / ISO 15105 | Uncontrolled gas permeability causing slow pressure decay | Incoming raw film gas transmission audit |
| Weld Seam Retained Thickness | Optical Micro-Sectioning | Over-thinning along weld notch triggering shear rupture | 50x optical microscopy verification of weld notch radius and retained film stack thickness |
| Pneumatic Pressure Hold | ASTM F2095 Differential Decay | Micro-porosities passing short water-dunk inspections | 24-hour isothermal decay hold with digital manometer |
| Dynamic Fatigue Durability | ASTM F392 / ASTM F1566 | Premature seam fatigue under repetitive human loading | Cyclic indentation rig (10,000+ cycles) |
4. Frequently Asked Questions (FAQ)
Q: How do engineers prevent micro-leakage during high-volume production scaling?
A: By enforcing closed-loop High-Frequency generator parameters, precision CNC electrode maintenance, ISO Class 8 cleanroom valve assembly, and 100% dry differential pressure decay quality gates.
Q: Why are pure Polyether TPU films favored over PVC or polyester blends?
A: Polyether TPU offers complete immunity to hydrolytic degradation and microbial growth in humid seating microclimates, contains zero migrating liquid plasticizers, and maintains elastic flexibility down to sub-zero temperatures.
5. Actionable Next Steps for Technical & Sourcing Teams
Contact Airjour's specialized flexible pneumatics engineering team to evaluate your CAD designs, audit your current supplier tooling, or coordinate a certified pilot qualification run.
